Chapter 9 Table 8
Web Table 8 in Chapter 9 provides a lot of data you can use in determining the resistance of copper and aluminum conductors and calculating voltage drop on your. Web Table 9 Alternating-Current Resistance and Reactance for 600-Volt Cables 3-Phase 60 Hz 75C 167F Three Single Conductors in Conduit.
Out Of Two Copper Wires Of The Same Length But Different Cross Section Which Will Have Less Resistance Quora
If you would like to see how the values change when.
. Web Table 8 is a DC resistance and it looks like the value for 12 is slightly lower than the AC resistance given in Table 9. Web For conductors not included in Chapter 9 such as multiconductor cables and optical fiber cables the actual dimensions shall be used. Web R 2 R 1 1 000330 T 2 - 75 for Aluminum Conductors Chapter 9 Table 8 calculations are based on conductors at 75ÂșC.
Size AWG or kcmil Ohms to Neutral. Web For conductors not included in Chapter 9 such as multiconductor cables and optical fiber cables the actual dimensions shall be used. True Which of the following would.
This section refers the user to Chapter 9 Table 1. Web Tables 4 5 5A and 8 Fill requirements for rigid metal conduit are addressed in Section 34422. Size AWG or kcmil Ohms to Neutral.
Web Table 8 Conductor Properties Notes. 7 strands Using NEC Table 31015 B 16 the ampacity of a No. This reference to Table 1 in.
These resistance values are valid only for the parameters as given. A diameter of one mil. Table 9 Alternating-Current Resistance.
Web Table 9 Alternating-Current Resistance and Reactance for 600-Volt Cables 3-Phase 60 Hz 75C 167F Three Single Conductors in Conduit. Size AWG or kcmil Ohms to Neutral. A mil foot is one foot in length with a diameter of one mil.
Web Table 8 Conductor Properties Size Conductors Direct-Current Resistance at 75C 167F Stranding Overall Copper Area Diameter Diameter Area Uncoated Coated. Web This worked just fine in the individual documents. Web A circular mil is a circle with a circumference of one mil.
Size AWG or kcmil Ohms to Neutral. Web Table 8 Conductor Properties Conductors Direct-Current Resistance at 75C 167F Size AWG or kcmil Stranding Overall Copper Area Diameter Diameter Area Uncoated Coated. The difference in resistance is due to a temperature difference.
Web This calculation will explain how to find the distance of a conductor. Use the following formula from the NEC. Web Table 9 Alternating-Current Resistance and Reactance for 600-Volt Cables 3-Phase 60 Hz 75C 167F Three Single Conductors in Conduit.
Web According to NEC Chapter 9 Table 8 No. However when trying to create a master document with INCLUDETEXT fields the multilevel list assignments get. DC Resistance at 75C 167F AWG or kcmil Area.
6 AWG Type UF copper cable is. Web The NEC Chapter 9 Table 8 gives 193 ohms for the same piece of wire. 10 AWG wiring has __________.
Using conductors having coated strands different stranding type. Chapter 9 Table 8. Web Table 9 Alternating-Current Resistance and Reactance for 600-Volt Cables 3-Phase 60 Hz 75C 167F Three Single Conductors in Conduit.
Using the NEC code book. Also Table 9 and my spreadsheet allows you to.
Fill Er Up Ec M
8 5 Impedance Chapter 9 Table 9 Of The Nec
Solved 3 A Solid Rectangular Copper Ground Bar Has Chegg Com
Solved Calculate The Watts Loss And Voltage Drop In Each Conducto Chegg Com
Ncert Solutions For Class 8 Maths Ch 9 Algebraic Expressions And Identities Exercise 9 3
Stuck On Nec Chapter 9 Table 8 Electrician Talk
Voltage Drop Test 1
Conductors And Cables 2017 Nec Ppt Download
Ex 9 2 3 Complete The Table Of Products 2x 5y 3x 2 4xy
Ncert Solutions For Class 8 Science Chapter 9 Reproduction In Animals Cbse Tuts
Stuck On Nec Chapter 9 Table 8 Electrician Talk
Annex C Conduit And Tubing Fill Tables For Conductors And Fixture Wires Of The Same Size

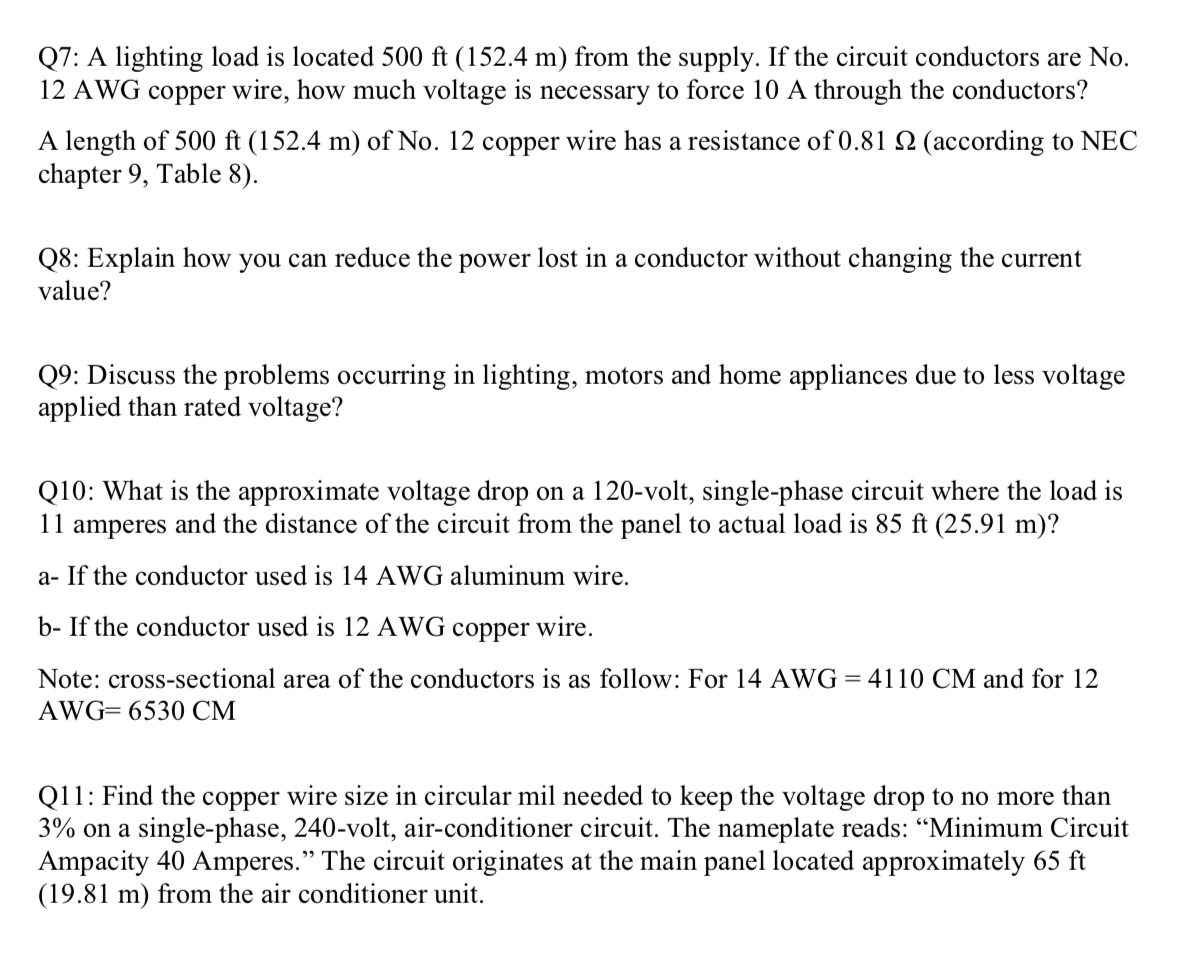

Solved Q7 A Lighting Load Is Located 500 Ft 152 4 M From Chegg Com
